Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: YYTF
  • Model Number: GW42D
  • Machine Type: wire bending machinery
  • Raw Material: Steel Bar
  • Material / Metal Processed: Carbon Steel
  • Power: electric
  • Automation: Automatic
  • Extra Services: End Forming
  • Certification: ISO 9001:2000
  • After-sales Service Provided: Engineers available to service machinery overseas
  • name: bending machinery, steel bar bender machine manufacturer GW42D
  • bend wire diameter: 6-40mm
  • bend flat bar diameter: 50*15mm
  • motor type: brake motor
  • power: electricity
  • motor: 3KW/380V/3Phase/50HZ

Packaging & Delivery

Packaging Details wooden case and iron frame
Delivery Time Shipped in 15 days after payment



Product Description

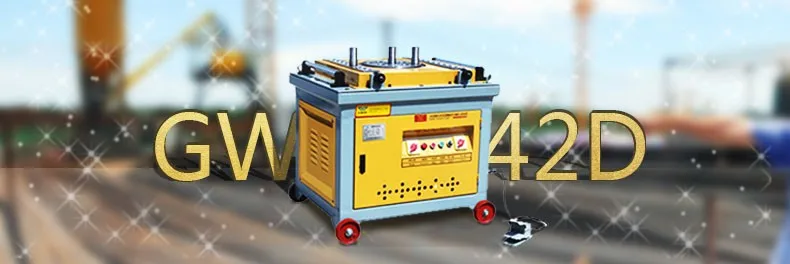

GW42D Model Steel Bar Bender is an engineering steel bar bending equipment manufactured according to industrial standard JG/T5081-1996. The machine is convenient, reliable and stable.GW40 Model Steel Bar Bender mainly consists of transmission part, rack, bending fixture (accessory), and electric appliance. The principle of main transmission is that the motor transmits power to level II straight gear transmission through belt, then level II gear pair transmits power to worm through driving wheel. The worm transmits power to worm wheel through spiral, so that the working disk installed on main shaft gets power, which forms torque during bending process.



    Product Description



During gear transmission of GW40A Model, exchange assembly of 23/33 gears, then working disk can get two speeds: high speed and low speed.

GW40 Model is heavy bending, so it is not suitable for adjustment.

GW40 Model Bender Motor Pulley, through triangular belt, transmits power to Shaft I motor pulley. Shaft I motor pulley drives gear. Shaft II drives Gear III. Then Gear III drives the working disk on principal axis. Through working disk and accessory installation, finish bending process.

During gear transmission of GW40 Model, exchange assembly of 23/33 gears, then working disk can get two speeds: high speed and low speed.

GW40 Model is heavy bending, so it is not suitable for adjustment.

GW40 Model Bender Motor Pulley, through triangular belt, transmits power to Shaft I motor pulley. Shaft I motor pulley drives gear. Shaft II drives Gear III. Then Gear III drives the working disk on principal axis. Through working disk and accessory installation, finish bending process.



GW42D
Bending Capacity             II Rebar                42mm
III Rebar      36mm
Working Dish Size 360mm
Spindle Speed High 9.63rpm
 Low 4.68rpm
Motor Power 3kw(3 Phase)
Voltage 380v
Weight 340kg
Dimension 930*730*840
Motor Optional 220v/415v/440v
 50HZ/60HZ



GW42D Model Bender has excellent bending performance, which can manufacture steel bar precast products of various shapes, so as to meet diversified requirements of construction technologies.



The premise of realizing that the steel bar works in bent condition is to insert different accessories in work disk and long bar. Finish bending work during the rotation process of working disk. For bending steel bar, prepare accessories according to the diameter of the steel bar. Therefore, the selection of accessories of bending process is very important. The accessories shall be provided according to accessories table. During work, when bending less than 20 steel bar, use block-off-material panel and accessories. When bending more than20 steel bar, directly use block-off-material panel to finish it.





   Quality Control And After-Sales Service


We have adopted a system of total quality control to ensure that our products conform to strict industry standards and parameters. We use the quality imported parts and materials that are procured from reputed manufacturers. In addition, the different stages of production are closely monitored by our engineers to ensure complete satisfaction of the user of our products.



if quality problems cause the user to fail to use the machine, after repair the user still fails to use the machine.

We promise to replace the machine with new one after the machine is sold within one month.

The expenses generated hereof shall be borne by manufacturer (subject to effective bill).

Components and parts (non-consumable parts) are under replacement and warranty within 3 months.

If the whole machine suffers major quality problems such as engine body, box, and gear fracture, the warranty period is 6 months.

If quick-wear parts of the machine listed in the below table have problems, the quick-wear parts are not in scope of three guarantees. (Remark: effective period is subject to date of invoice)



    Certifications



ISO9001,CQC,SGS,BV







     Packaging & Delivery



Packaging Details: Iron frame, wooden case, as customer’s request

Shipment Details: 15 days after payment, Fob Qingdao or Shanghai port

     Company Profiles





Culture Show

Processing Workshop

Our Team

Customer Showcase




With 14 years experience,Xuchang FengYiDa Machinery Manufacturing Co.,Ltd insists in manufacturing small-sized construction machines. As a professional manufacturer in this field,we pay more attention to quality than on variety. our products cover Southeast Asia,South Asia, Middle East,South America,Africa,which brings us good reputation in global market. 95% machine parts are processed by our own CNC center. We're able to supply 5000sets machines every month. Being cautious and conscientious in small construction machines, with the spirit of spatiality and focus, we innovate and lead the steel processing market
